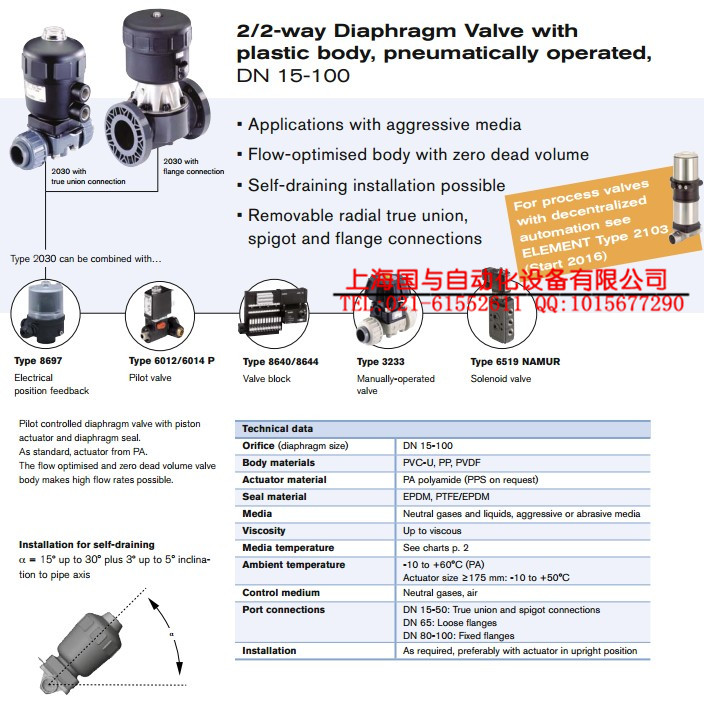

burkert塑料隔膜閥2030 囯與供圖 Suitable for foodstuffs • The composition of the EPDM and PTFE/EPDM diaphragms corresponds to the Code of Federal Regulations, burkert塑料隔膜閥2030 囯與供圖 published by the FDA (Food and Drug Administration, USA).
burkert塑料隔膜閥2030 囯與供圖
burkert塑料隔膜閥2030 囯與供圖
內徑DN15-100
閥體材質PVC-U，PP，PVDF
執行器材料PA聚酰胺（PPS應要求提供）
密封材料EPDM，PTFE / EPDM
媒體中性氣體和液體，攻擊性或研磨介質
粘度高達粘性 burkert塑料隔膜閥2030 囯與供圖介質溫度見圖表頁。 2
環境溫度-10至+60°C（PA）
burkert塑料隔膜閥2030 囯與供圖
Actuator size ≥175 mm: -10 to +50°C
Control medium Neutral gases, air
burkert塑料隔膜閥2030 囯與供圖 Port connections DN 15-50: True union and spigot connections
DN 65: Loose fl anges
DN 80-100: Fixed fl anges
Installation As required, preferably with actuator in upright position
burkert塑料隔膜閥2030 囯與供圖
