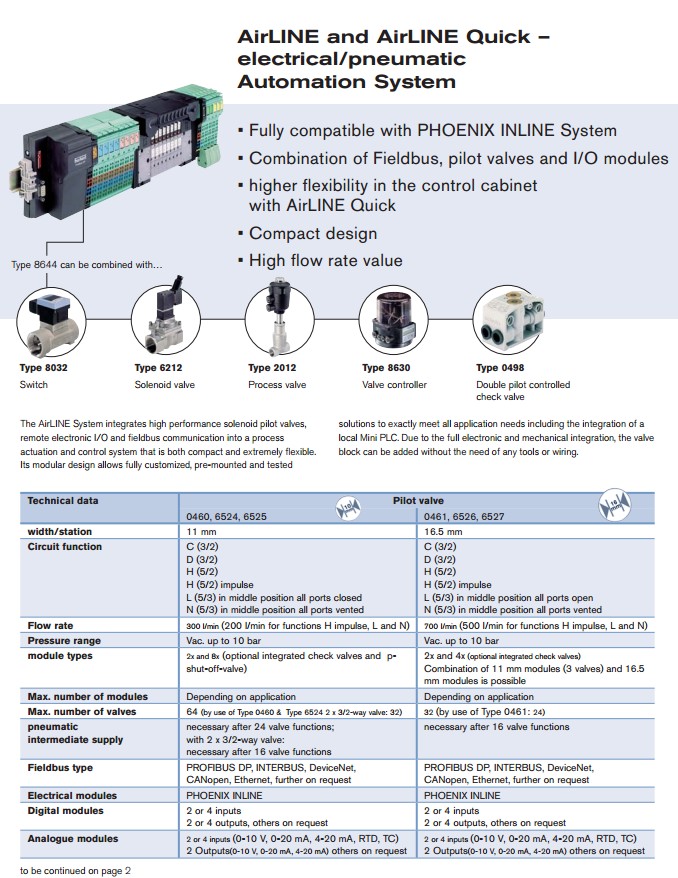

burkert 8644閥組burkert0460/0461電磁閥 Die Airline System integriert Hochleistungsmagnetpilotventile , elektronische Fern I / O- und Feldbus-Kommunikation in einem Prozess Betätigungs- und Steuersystem, das sowohl kompakt als auch extrem flexibel ist. burkert 8644閥組burkert0460/0461電磁閥 Der modulare Aufbau ermöglicht die vollständig angepasst, vormontiert und getestet Lösungen genau alle Anwendungsanforderungen einschließlich der Integration von einem lokalen Mini-SPS erfüllen. burkert 8644閥組burkert0460/0461電磁閥 Durch die vollständige elektronische und mechanische Integration kann der Ventilblock ohne die Notwendigkeit von Werkzeugen oder Leitungen hinzugefügt werden.
burkert 8644閥組burkert0460/0461電磁閥
burkert 8644閥組burkert0460/0461電磁閥
Body material Aluminium
Seal material NBR
Medium lubricated and non lubricated dry compressed air;
Neutral gases
(5μm fi lter recommended)
burkert 8644閥組burkert0460/0461電磁閥
Port connections Flange
Pneumatic module MP11
Supply port connection
1 (P), 3 (R), 5 (S)
G 1/4
1/4
burkert 8644閥組burkert0460/0461電磁閥
Push-in connection Ø 10 mm
Service port 2 (A), 4 (B) Push-in connection Ø 6 mm
push-in connection Ø 1/4”
threaded port M7
Operating voltage 24 V/DC
Electrical connection
at the valve
Rectangular plug
Manual override standard
Flow rate: QNn value
burkert 8644閥組burkert0460/0461電磁閥
air [l/min]
Measured at +20°C, 6 bar pressure at valve inlet
and 1 bar pressure difference
Pressure values [bar] Measured as overpressure to the atmospheric
pressure
Response times [ms] Measured according to ISO 12238
