burkert 5411電磁閥 Position power-off: The space above the piston is normally relived to the outside via the pilot valve. burkert 5411電磁閥 The compressed air from the connection (P) pushes the piston upward and closes the lower seat, the connection from (P) to (B) is open.
聯(lián)系人：李超
聯(lián)系方式：021-61552611/13371929516
詢價(jià)qq：1015677290
burkert 5411電磁閥 Position after switching on the current: The pilot valve opens the pilot bore and exposes the piston from above to pressure. burkert 5411電磁閥 Through the large surfaces on the actuation side, the piston is pushes down, closes the upper seat, the connection (B) is relieved via the lower seat.

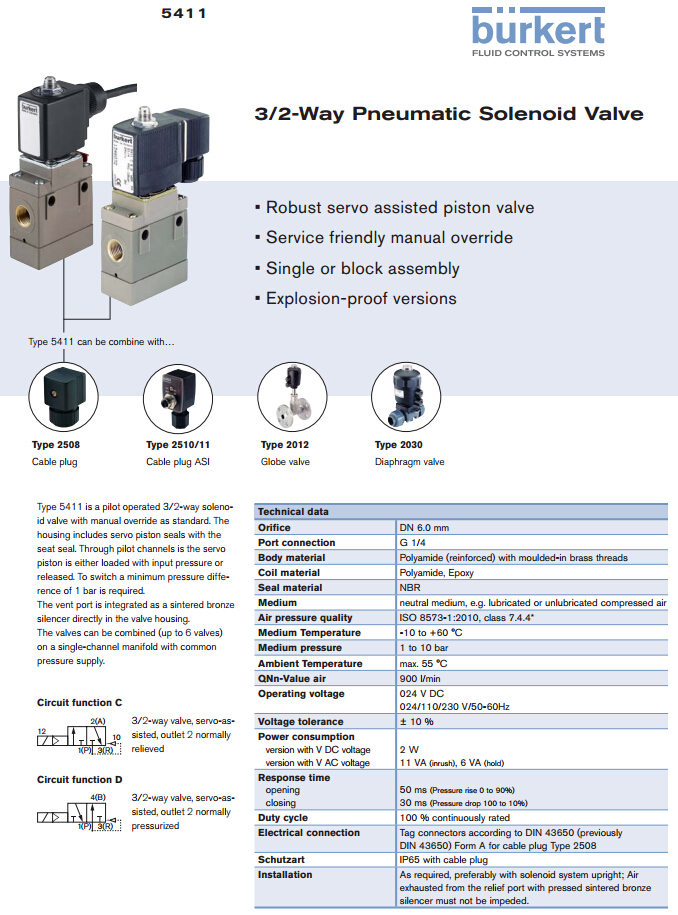

burkert 5411電磁閥參數(shù)：
burkert 5411電磁閥
Orifi ce DN 6.0 mm
Port connection G 1/4
Body material Polyamide (reinforced) with moulded-in brass threads
Coil material Polyamide, Epoxy
burkert 5411電磁閥 Seal material NBR
Medium neutral medium, e.g. lubricated or unlubricated compressed air
Air pressure quality ISO 8573-1:2010, class 7.4.4*
Medium Temperature -10 to +60 °C
burkert 5411電磁閥 Medium pressure 1 to 10 bar
Ambient Temperature max. 55 °C
QNn-Value air 900 l/min
Operating voltage 024 V DC
024/110/230 V/50-60Hz
Voltage tolerance ± 10 %
burkert 5411電磁閥
