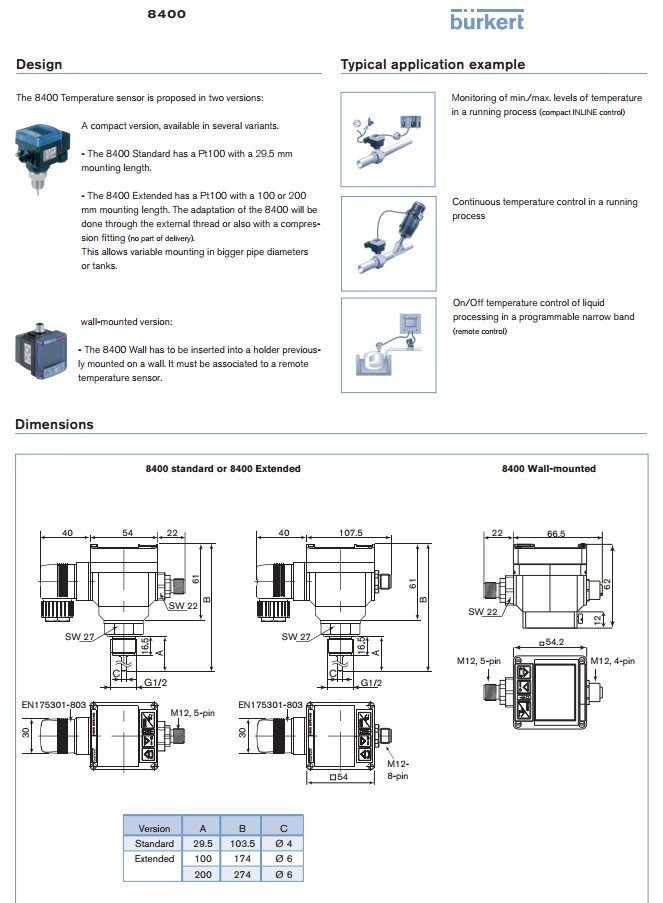

進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400 This intelligent sensor/switch with an extralarge display is specifically designed to switch a valve and to establish a monitoring system or an ON/OFF control loop. 進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400 Compact and wall versions are available. 進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400 The wall-mounted version must be inserted into a holder previously mounted on a wall, and it must be associated with a remote temperature sensor
銷售人員：李超
聯系方式：021-61552611/13371929516
詢價qq：1015677290
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400特點：
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400參數：
burkert 8400 Sensor element Pt100
burkert 8400 Screw-in thread G, NPT, Rc 1/2”
burkert 8400 Electrical connections Cable plug: EN 175301-803
burkert 8400 Multipin: swivel M12, 5-pin or M12, 4-pin or 8-pin
burkert 8400 Voltage supply cable max. 100 m, shielded, 0.14 up to 0.5 mm2 max.
5 Ω max. cable impedance (Wall-mounted version)
burkert 8400 Complete device data (pipe + electronic module)
burkert 8400 Pipe diameter Any pipe with sensor connection 1/2”
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400
burkert 8400 Measuring range
Compact version
burkert 8400 Wall-mounted version
-40 up to +125°C (-40 to 257°F) (with ambient temperature between
0 and +40°C (-32 and 104°F))
-40 up to +90°C (-40 to 194°F) (with ambient temperature above
+40°C(104°F))
-40 up to +125°C (-40 to 257°F)
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400
burkert 8400 Medium temperature +125°C max. (257°F)
Fluid pressure max. PN16
burkert 8400 Switching accuracy ±0.5°C (0.9°F)(0 up to +80°C (32 to 176°F))
±1.5°C (2.7°F)(outside of 0 up to +80°C (32 to 176°F))
burkert 8400 Repeatability ≤ ±0.4%
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400
進口burkert 8400溫度傳送器寶帝帶顯示屏溫度傳感器8400
