burkert 2732寶帝2732調節閥 The Burkert Zero Deadleg T Valve system is designed for control of ultra pure, sterile, aggressive or abrasive fluids. burkert 2732寶帝2732調節閥 Enables especially optimal sampling, draining or diverting of critcal process fl uids. burkert 2732寶帝2732調節閥 The valve body is machined from a single piece of block material (monoblock – no weld seam).
銷售人員：李超
聯系方式：021-61552611/13371929516
詢價qq：1015677290
burkert 2732寶帝2732調節閥參數：
burkert 2732 Orifice DN 4-100

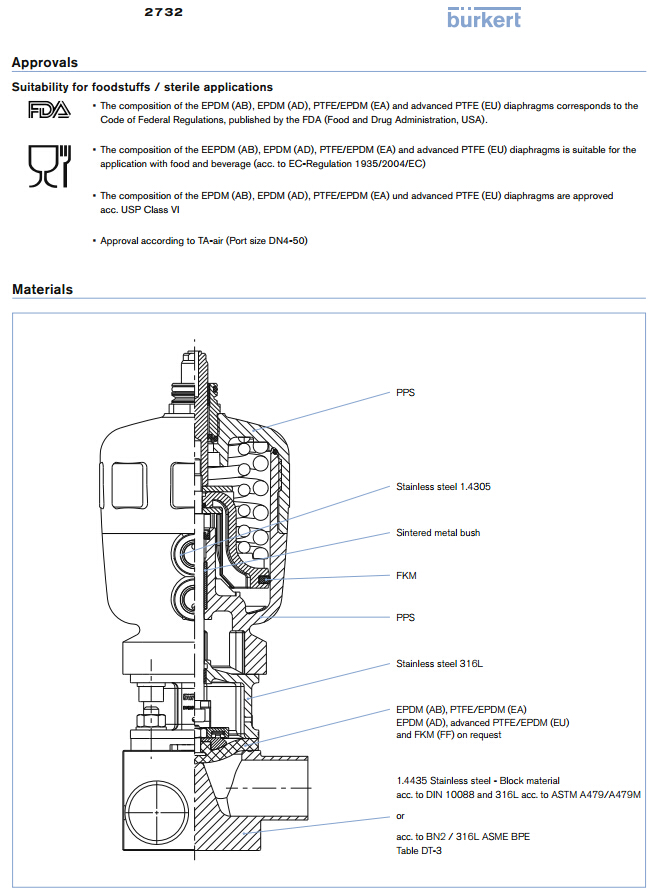

burkert 2732 Body materials • Stainless steel 1.4435 / 316 L
• Stainless steel 1.4435BN2 / ASME BPE
Fe < 0.5% / C ≤ 0.03%
burkert 2732 Diaphragm materials EPDM (AB), PTFE/EPDM (EA)
burkert 2732 EPDM (AD), advanced PTFE/EPDM (EU) and FKM (FF) on
request
burkert 2732 Actuator materials PPS, PA
Pilot air ports Stainless steel 1.4305
Surface fi nish Ra [μm] Ra [μlnch]
burkert 2732寶帝2732調節閥
burkert 2732 internal mechanical polished ≤0,5 ≤25
internal electro polished ≤0,38 ≤15
burkert 2732 Medium temperature
EPDM (AB), PTFE/EPDM (EA)
EPDM (AD), advanced PTFE/
EPDM (EU)
FKM (FF)
-10 to + 130 °C (steam sterilisation +140 °C for 60min)
-5 to +143 °C (steam sterilisation +150 °C for 60min)
0 to +130 °C (not recommended for steam)
burkert 2732寶帝2732調節閥
burkert 2732 Ambient temperature
Actuator size < 100 mm
Actuator size 100-125 mm
Actuator size ≥ 175 mm
+5 to +140 °C
+5 to +90 °C (briefl y up to +140 °C)
-10 to +50 °C
burkert 2732 Control medium Neutral gases; air
Pilot pressure max. max. 7 bar, see table on p. 2
burkert 2732寶帝2732調節閥
burkert 2732 Port connections
Weld end acc. to
Clamp acc. to
burkert 2732 EN ISO 1127 / ISO 4200, DIN 11850 Series 0 to 3, SMS
3008, ASME BPE, BS 4825
ISO 2852, ASME BPE, DIN 32676
burkert 2732寶帝2732調節閥
burkert 2732寶帝2732調節閥
