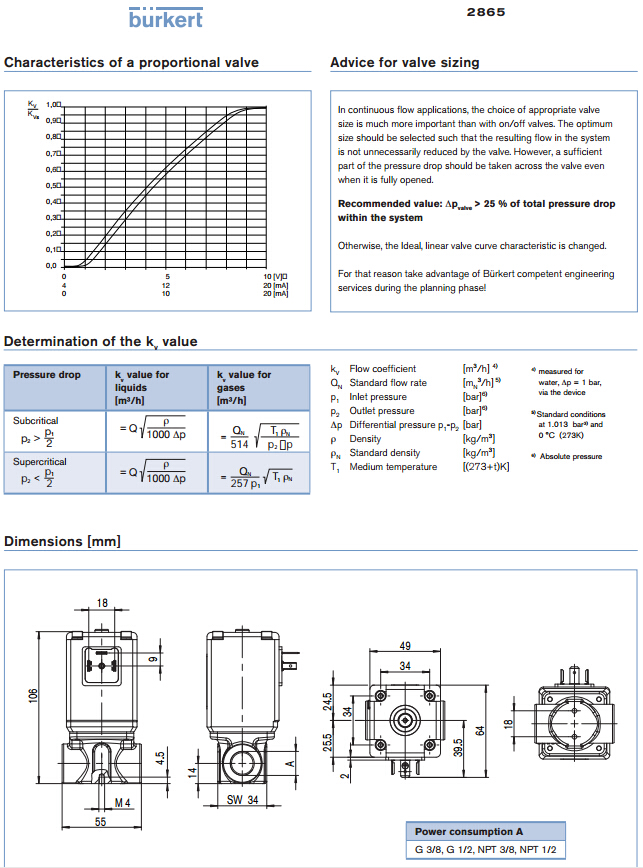

burkert 2865比例閥替代burkert 2875 Type 2865 is an extremely compact solenoid control valve and is available with an orifi ce up to 8mm. It is based on the standard version of Type 2875 (see datasheet). burkert 2865比例閥替代burkert 2875 It is used as an actuator in closed control loops (pressure, fl ow, temperature, etc.). burkert 2865比例閥替代burkert 2875 Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times. burkert 2865比例閥替代burkert 2875 Please follow the instructions for a customised design on page 4 of this datasheet.
銷售人員：李超
聯(lián)系方式：021-61552611
詢價(jià)qq：1015677290
burkert 2865比例閥替代burkert 2875特點(diǎn)：
burkert 2865比例閥替代burkert 2875參數(shù)：
burkert 2865 Body material Brass, stainless steel
burkert 2865 Seal material FKM, EPDM on request
burkert 2865 Medium Neutral gases, liquids on request
burkert 2865 Pressure range • 0 ... -25 bar 2)
burkert 2865 Medium temperature -10 ... +90 °C
burkert 2865 Ambient temperature max. +55 °C
burkert 2865 Power supply 24 V DC
burkert 2865比例閥替代burkert 2875
burkert 2865 Max. current 750mA (at 24V-hold)
Power consumption 16 W
burkert 2865 Duty cycle 100% continuously rated
burkert 2865 PWM control frequency 280 Hz
Port connection 3/8", 1/2" others on request
