burkert 2032氣動T型閥DN 4-100 The Burkert Zero Deadleg T Valve system is designed for control of ultra pure, sterile, aggressive or abrasive fluids. Enables especially optimal sampling, draining or diverting of critcal process fluids. burkert 2032氣動T型閥DN 4-100 The valve body is machined from a single piece of block material (monoblock – no weld seam).
銷售人員：李超
聯系方式：021-61552611/13371929516
qq：1015677290
burkert 2032氣動T型閥DN 4-100特點：
burkert 2032 Orifice DN 4-100

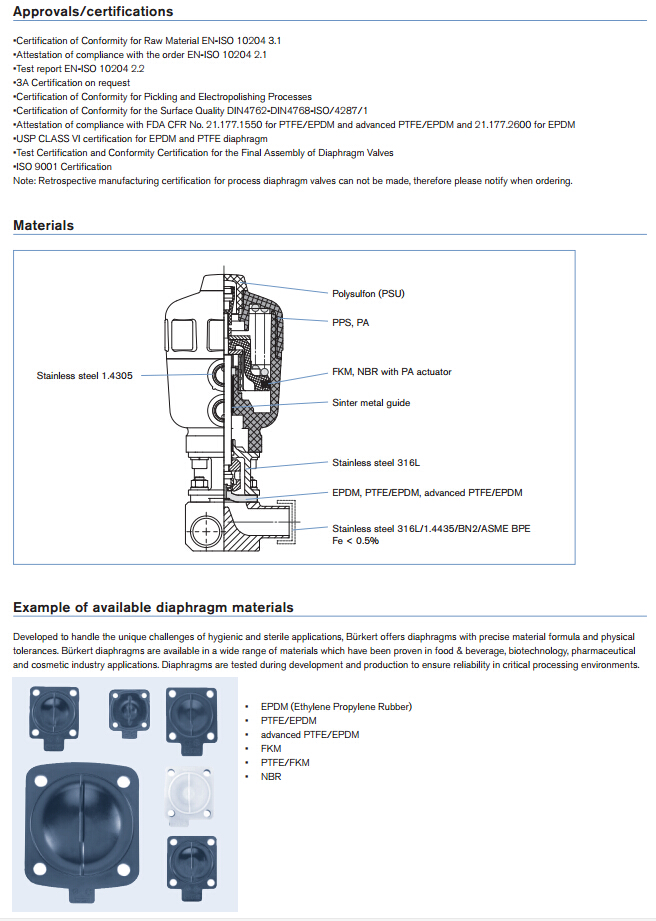

burkert 2032 Body materials • Stainless steel 1.4435 / 316 L
• Stainless steel 1.4435BN2 / ASME BPE
Fe < 0.5% / C 0.03%
burkert 2032 Diaphragm materials EPDM, PTFE/EPDM, advanced PTFE/EPDM, FKM
Actuator materials PPS, PA
burkert 2032 Pilot air ports Stainless steel 1.4305
Surface finish Ra [µm]
internal
Ra [µlnch]
internal
Ra [Grit #]
burkert 2032氣動T型閥DN 4-100
internal
burkert 2032 mechanical polished 0.6 25 180
electro polished 0.6 25 180
mirror finished 0.25 10 330
burkert 2032 Medium temperatures
EPDM, PTFE/EPDM, advanced
PTFE/EPDM1)
FKM
-10 to +130°C (briefly up to +150°C for steam sterilisation)
-10 to+130°C
burkert 2032氣動T型閥DN 4-100
burkert 2032 Ambient temperature
Actuator size < 100 mm
Actuator size 100-125 mm
Actuator size 175 mm
+5° to +140°C
+5° to +90°C (briefly up to +140°C)
-10° to +50°C
burkert 2032 Control medium Neutral gases; air
burkert 2032氣動T型閥DN 4-100
burkert 2032 Pilot pressure max. max. 7 bar, see table on p. 2
Port connections
Weld end acc. to
Clamp acc. to
burkert 2032 EN ISO 1127 / ISO 4200, DIN 11850 Series 0 to 3,
SMS 3008, ASME BPE, BS 4825
burkert 2032 ISO 2852, ASME BPE, DIN 32676
