burkert 2400活塞閥 The servo-assisted Type 2400 valve has aservo-piston with a 2-way servo-control. It is designed for high pressures. The speciality of this valve design lies in the layout of the seat and sealing element. Anadburkert 2400活塞閥ditional radial seal make very good sealing possible. The tapered sealing element of the servocontrol permits the switching of high pressureat relatively low coil power.
burkert 2400活塞閥特點：
重疊線圈系統
特殊的版本，耐壓高達250bar，最高至DN12
不銹鋼機身
burkert 2400活塞閥參數
Body material stainless steel, brass and brass, nickel-plated
Valve internals stainless steel
Sealing material PEEK/FKM; PCTFE/FKM; PTFE/FKM
Media neutral gases and fl uids
Medium temperature
burkert 2400活塞閥
PEEK/FKM
PCTFE/FKM
PTFE/FKM
–10 to +80 °C
–10 to +80 °C
–10 to +80 °C
Ambient temperature max. +55 °C
Viscosity ca. 21 mm/s
Operating voltage 24/DC
24/220-230 V / 50 Hz
other voltages on request
Voltage tolerance ±10%
burkert 2400活塞閥
Cycling rate ca. 80/min
Duty cycle 100 % continuous rating
Electrical connection Cable plug (part of the delivery)
Protection class IP65 with cable plug
Installation as required, preferably with actuator upright

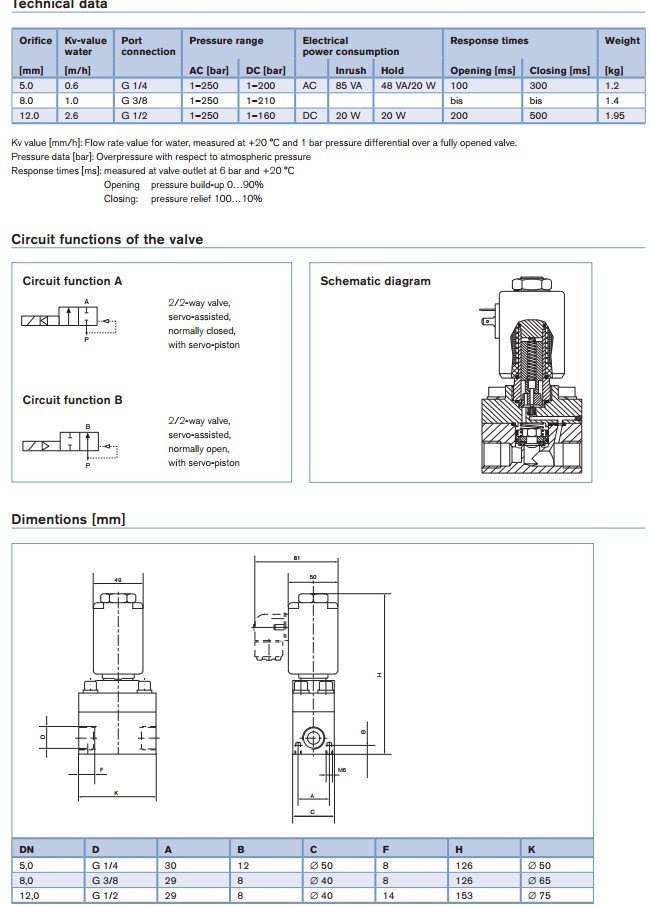

burkert 2400活塞閥結構圖：
burkert 2400活塞閥
