burkert 0460電磁閥寶德0460氣動系統脈沖閥特點：
burkert 0460電磁閥寶德0460氣動系統脈沖閥描述：

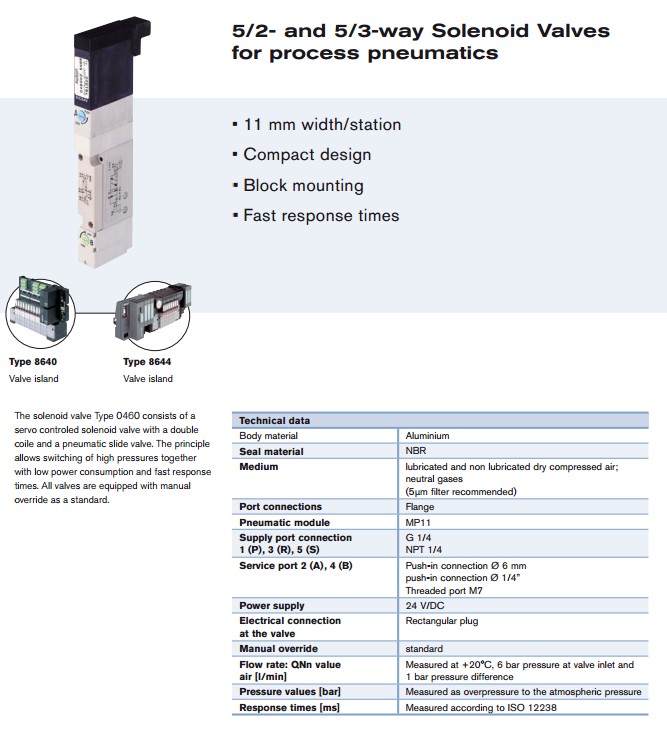

The solenoid valve Type 0460 consists of a
servo controled solenoid valve with a double
coile and a pneumatic slide valve. The principle
allows switching of high pressures together
with low power consumption and fast response
times. All valves are equipped with manual
override as a standard.
burkert 0460電磁閥寶德0460氣動系統脈沖閥技術參數：
burkert 0460電磁閥寶德0460氣動系統脈沖閥訂貨號：
00154183
00154184
00154185
Body material Aluminium
Seal material NBR
Medium lubricated and non lubricated dry compressed air;
neutral gases
(5μm fi lter recommended)
Port connections Flange
Pneumatic module MP11
Supply port connection
1 (P), 3 (R), 5 (S)
G 1/4
NPT 1/4
burkert 0460兩位三通氣動電磁閥寶帝0460兩位五通電磁閥
Service port 2 (A), 4 (B) Push-in connection Ø 6 mm
push-in connection Ø 1/4”
Threaded port M7
Power supply 24 V/DC
Electrical connection
at the valve
Rectangular plug
Manual override standard
Flow rate: QNn value
air [l/min]
Measured at +20°C, 6 bar pressure at valve inlet and
1 bar pressure difference
Pressure values [bar] Measured as overpressure to the atmospheric pressure
Response times [ms] Measured according to ISO 12238
burkert 0460兩位三通氣動電磁閥寶帝0460兩位五通電磁閥
